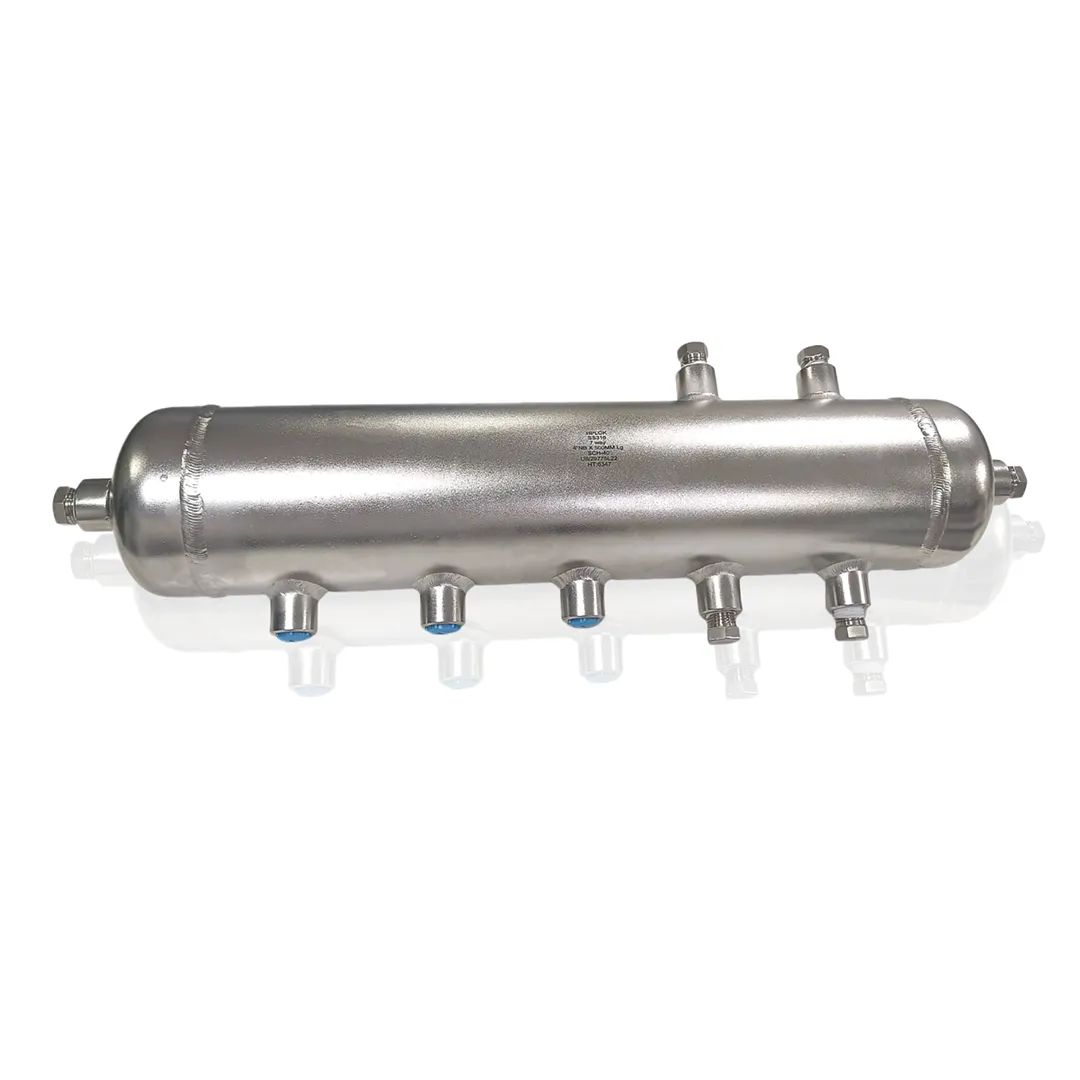

Multi port condensate pot with level gauge assembly for pressure vessels & steam systems. Monitors condensate levels in pipelines. Multiple connection ports. SS/CS/Alloy/Nickel. 2″ to 6″ NB. SCH 40 to XXS. SKU: HPCP604.
Product Description
Monitor and control condensate levels with precision using the Multi Port with Level Gauge Assembly (SKU: HPCP604) . This robust condensate pot is specifically designed for pressure vessel and instrumentation systems, providing a reliable solution for collecting, storing, and indicating condensate levels in steam lines, process pipelines, and boiler systems. The integrated level gauge assembly allows operators to visually monitor condensate accumulation in real-time, enabling timely draining and preventing carryover that can damage downstream equipment. Featuring multiple connection ports, this vessel offers flexible integration with pressure instruments, level switches, drain valves, and vent connections. Engineered for demanding steam applications, it ensures accurate level measurement, protects instrumentation from high-temperature exposure, and enhances system safety. Manufactured from Stainless Steel, Carbon Steel, Alloy Steel, or Nickel Alloy for superior corrosion resistance and durability. Available in nominal bore sizes from 2″ NB to 6″ NB, with NPT, BSP, BSPT, or SW end connections, and pressure ratings from Schedule 40 to Schedule XXS.
Key Bullet Points (At a Glance)
Type: Multi Port Condensate Pot with Level Gauge Assembly
Function: Condensate collection, level monitoring, and instrumentation integration
Size Range: 2″ NB to 6″ NB (Nominal Bore)
End Connections: NPT / BSP / BSPT / SW
Pressure Rating: Schedule 40 to Schedule XXS
Material Options: Stainless Steel / Carbon Steel / Alloy Steel / Nickel Alloy
Included: Level Gauge Assembly (sight glass / reflex / transparent type)
SKU: HPCP604
Product Features
Integrated Level Gauge Assembly: Complete level gauge (sight glass, reflex, or transparent type) provides continuous visual indication of condensate level—enables timely operator intervention and prevents system issues.
Multi-Port Configuration: Multiple connection ports (typically 4 to 6 ports) allow flexible integration with:
Pressure instruments (gauges, transmitters, switches)
Level switches (pneumatic or electronic)
Drain valves (manual or automatic)
Vent connections
Equalizer lines
Condensate Collection & Storage: Designed to collect and hold condensate from steam lines, preventing liquid hammer and protecting downstream equipment from moisture damage.
Steam System Specialization: Essential component for steam distribution systems, boiler houses, heat exchangers, steam separators, turbine systems, and process lines requiring moisture separation.
Instrumentation Protection: Acts as a condensate reservoir and thermal barrier, protecting level switches, pressure transmitters, and other instruments from direct steam exposure and thermal shock.
Large Size Range: Available from 2″ NB to 6″ NB to suit various flow rates and system capacities.
Multiple End Connections: Available in NPT, BSP, BSPT, or SW for flexible integration with existing piping systems.
Wide Material Selection: Available in Stainless Steel (SS304, SS316), Carbon Steel, Alloy Steel, and Nickel Alloy—select based on media compatibility, temperature, and corrosion requirements.
Heavy-Duty Pressure Rating: Engineered for Schedule 40 to Schedule XXS pressure classes to match your process conditions—from standard steam to high-pressure superheated applications.
Code Compliant: Manufactured in accordance with ASME Boiler & Pressure Vessel Code, PED, or other applicable standards (upon request).
Complete Assembly: Supplied as a fully assembled unit including:
Condensate pot vessel body
Level gauge assembly with protection guards
Threaded or welded connections
Mounting brackets (optional)
Applications Include: Steam line drip legs, condensate collection points, boiler drum level monitoring, heat exchanger outlet lines, separator vessels, and instrument isolation pots.
