Six Port Condensate Pot with Level Gauge Assembly

Product Features

• Six-Port Multi-Connection Design: Six strategically positioned ports enable comprehensive system integration—connect pressure instruments, level switches, drain valves, vent valves, equalizer lines, and secondary instruments simultaneously from a single condensate pot.

• High-Pressure Instrumentation Ready: Specifically engineered for high-pressure steam systems, boiler applications, and process lines requiring robust condensate management at elevated pressures.

• Integrated Level Gauge Assembly: Complete level gauge (sight glass, reflex, or transparent type) provides real-time visual indication of condensate levels, allowing operators to monitor and respond to level changes immediately.

• Enhanced Connectivity: Six ports offer superior flexibility compared to standard multi-port pots, eliminating the need for additional manifolds or tee fittings in complex installations.

• Condensate Collection & Storage: Designed to effectively collect and hold condensate from high-pressure steam lines, preventing liquid hammer and protecting downstream instrumentation and equipment from moisture damage.

• Instrumentation Protection: Serves as a condensate reservoir and thermal barrier, protecting level switches, pressure transmitters, differential pressure transmitters, and other sensitive instruments from direct steam exposure and thermal shock.

• Large Size Range: Available from 2″ NB to 6″ NB to accommodate various flow rates, system capacities, and installation requirements.

• Heavy-Duty Pressure Rating: Engineered for Schedule 40 to Schedule XXS pressure classes to match demanding process conditions—from standard steam to ultra-high-pressure superheated applications.

• Multiple End Connections: Available in NPT, BSP, BSPT, or SW for seamless integration with global piping and instrumentation standards.

• Wide Material Selection: Available in Stainless Steel (SS304, SS316/L), Carbon Steel, Alloy Steel (P11, P22, P91), and Nickel Alloy—select based on media compatibility, temperature, and corrosion requirements.

• Code Compliant Construction: Manufactured in accordance with ASME Boiler & Pressure Vessel Code Section VIII, PED, or other applicable international standards (upon request).

• Typical Port Allocation (6 ports):

  • Port 1 & 2: Level gauge assembly connections

  • Port 3: Pressure transmitter / instrument connection

  • Port 4: Level switch connection

  • Port 5: Drain valve connection

  • Port 6: Vent / equalizer line connection

• Complete Factory Assembly: Supplied as a fully assembled, pressure-tested unit including:

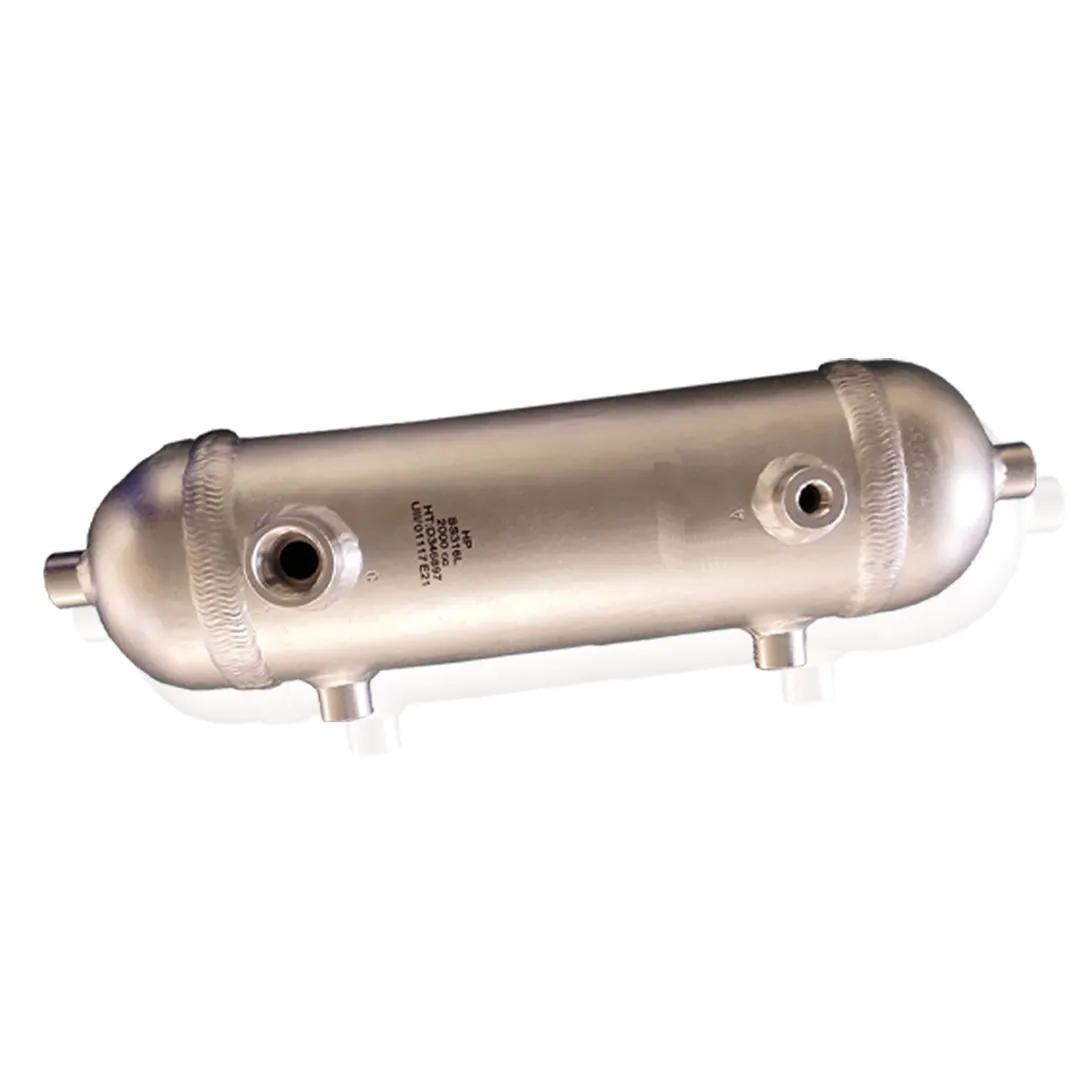

  • Condensate pot vessel body with six threaded/welded ports

  • Level gauge assembly with protection guards

  • All necessary mounting hardware (optional)

• Applications Include: High-pressure steam drum level monitoring, boiler feedwater lines, turbine condensate extraction lines, heat exchanger outlet manifolds, separator vessels, and critical process instrument isolation pots.
