| MODEL. NO. | HPFSCP607 |
| PRODUCT | CONDENSATE POT |
| TYPE | 5 PORT |
| MATERIAL | SS316,SS316L, MONEL 400, INCONEL 625, DUPLEX, SUPER DUPLEX |
| PIPE SCHEDULE | SCH 80 TO SCH 160 |
| PRESSURE RATING | AS PER SELECTED SIZE, MATERIAL, WALL THICKNESS AND DESIGN CONDITIONS |
| TEMPERATURE RATING | -28°C TO 400°C |
| APPLICATIONS | INSTRUMENTATION, OIL & GAS, CHEMICAL, PETROCHEMICAL, POWER, HYDRAULIC & PNEUMATIC SYSTEMS |
| NO OF PORT | 5NOS |
| PORT CONNECTION | THREADED & SW |
| SIZE | 2″ TO 6″ |
| THREAD STANDARDS | ASME B1.20.1, ISO 7-1, ISO 228-1, ASME B1.1, ISO 261 |
| SOCKET WELD CONNECTION | ASME B16.11 |
| ACCESSORY | PLUG |

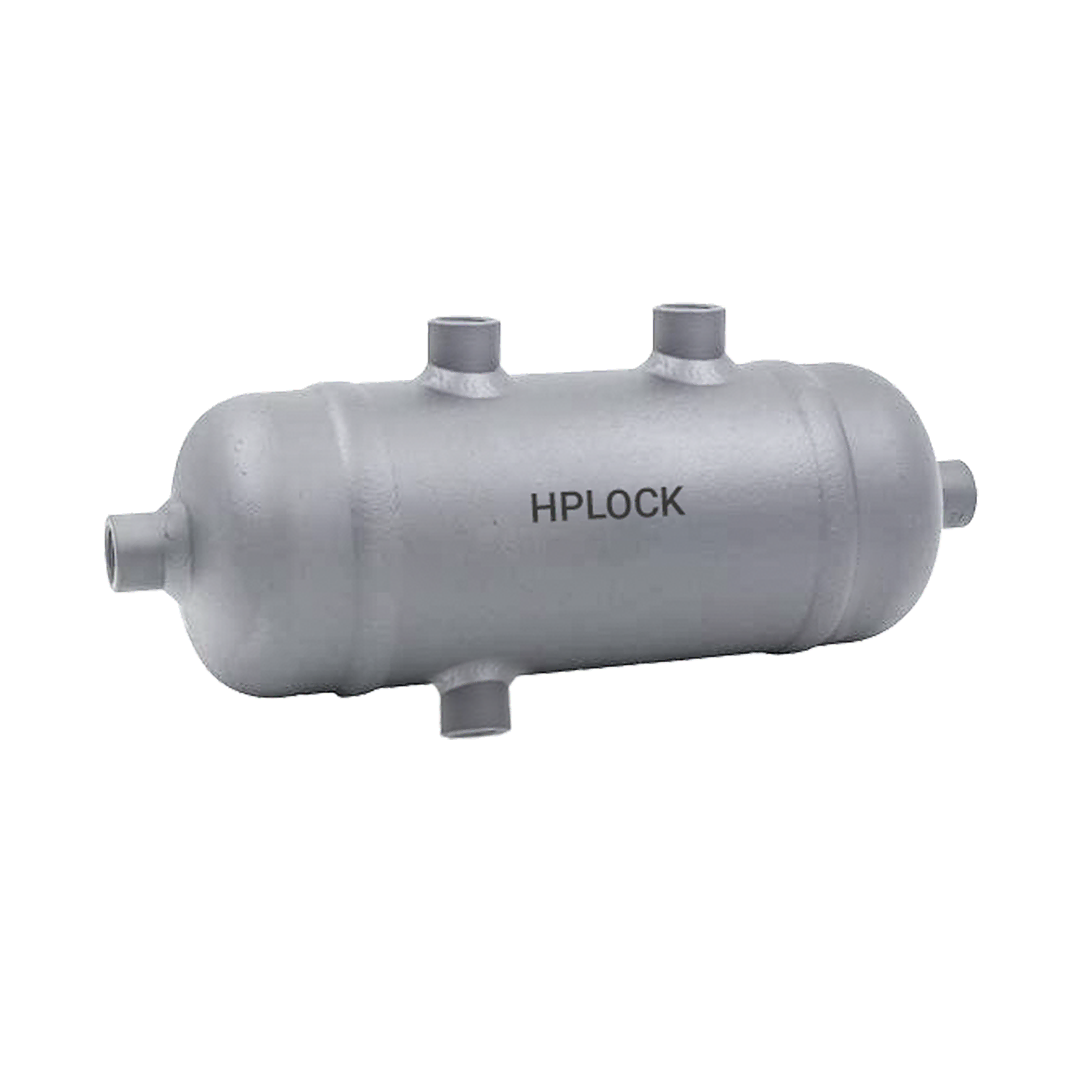

Five port condensate pot for complex instrumentation setups. Multiple connection points for instruments, drains & vents. SS/CS/Alloy/Nickel. 2″ to 6″ NB. SCH 40 to XXS. SKU: HPCP607.
