| PRODUCT | Extended Bonnet Flanged End Type |
| BODY TYPE | INTEGRAL |
| CONFIGURATION | BALL-NEEDLE-BALL |
| SIZE | 1/2″ TO 3″ |
| BORE TYPE | FULL BORE / REDUCED BORE |
| PR.RATING | CLASS 800# TO 2500# |
| END CONNECTION | FLANGED |
| THREAD TYPE | – |
| MATERIAL | CS / AS / SS / DSS / SDSS / SASS / MONEL / HASTELLOY / INCONEL / TITANIUM |
| BLOCK VALVE | FLOATING TYPE BALL VALVE |
| DRAIN VALVE | NEEDLE |
| SEAT | BLOCK – SOFT SEATED, DRAIN – METAL SEATED |
| FLUID | ALL GASES AND FLUIDS INCLUDING MULTIPHASE, HYDROGEN, CNG, LNG, HYDROCARBONS, AIR, STEAM |
| FLOW DIRECTION | BI-DIRECTIONAL |
| VALVE OPERATION | MANUAL HAND OPERATED |
| HANDLE TYPE | LEVER OPERATED |
| DRAIN CONNECTION | 1/2″ NPT (F) |
| PACKING MATERIAL | PTFE / RPTFE / PEEK / GRAPHITE |
| PACKING TYPE | SOFT SEAT |
| TESTING | AS PER API 598 |
| TEMPERATURE RATING | -28°C to 185°C |
| FACE-TO-FACE / END-TO-END DIMENSION | MANUFACTURER STANDARD |
| DESIGN STANDARD | ASME B16.34 |

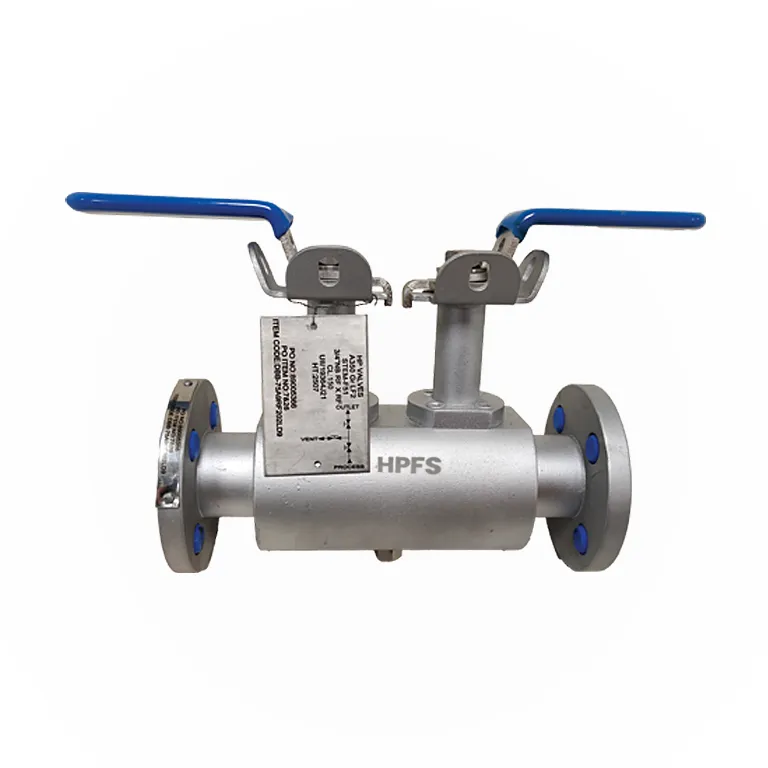

Key Block – Flanged End Type (Extended Bonnet)
