| MODEL. NO. | HPFSCV804 |
| PRODUCT | CHECK VALVE |
| VALVE TYPE | HP-SPRING LOADED |
| END CONNECTION | FEMALE THREAD X FEMALE THREAD |
| FLOW DIRECTION | UNI-DIRECTIONAL |
| SEAT DESIGN | SOFT SEATED |
| TRIM TYPE | BALL |
| BODY PATTERN | STRAIGHT |
| PRESSURE RATING | UP TO 20000 PSI (DEPENDING ON SIZE, MATERIAL AND TEMPERATURE) |
| CRACKING PRESSURE | AS PER CUSTOMER REQUIREMENT |
| REFERENCE STANDARD | MANUFACTURER’S STANDARD |
| FACE TO FACE DIMENSIONS | MANUFACTURER’S STANDARD |
| MATERIAL | SS316, SS316L, MONEL 400, INCONEL 625, DUPLEX, SUPER DUPLEX |
| APPLICATIONS | INSTRUMENTATION, OIL & GAS, CHEMICAL, PETROCHEMICAL, POWER, HYDRAULIC & PNEUMATIC SYSTEMS |
| OPERATION | AUTOMATIC |

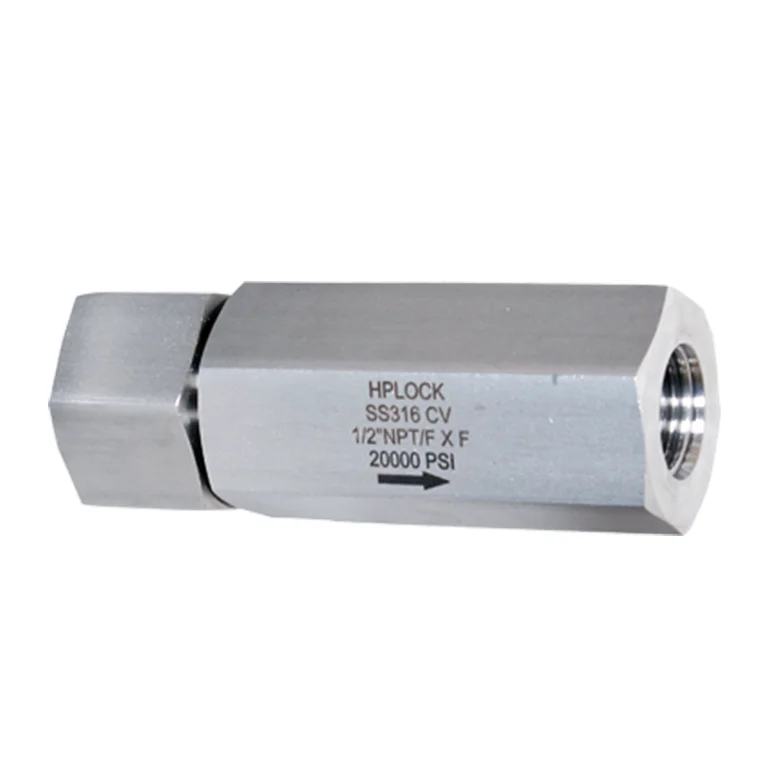

Check Valve – High Pressure Spring Load Type
