| MODEL. NO. | HPFSBV218 |
| PRODUCT | 3 WAY BALL VALVE |
| MODEL | HPFSBV218 |
| VALVE TYPE | BALL |
| BORE | REDUCED BORE |
| FLOW DIRECTION | BI-DIRECTIONAL |
| SEAT DESIGN | SOFT SEATED |
| BODY PATTERN | 4-PIECE |
| PRESSURE RATING | UP TO 6000 PSI |
| REFERENCE STANDARD | ASME B16.34 |
| DESIGN TEMPERATURE | DEPENDS ON MATERIAL AND SERVICE TEMPERATURE |
| DIFFERENTIAL PRESSURE | FULL DIFFERENTIAL PRESSURE |
| FACE TO FACE DIMENSIONS | MANUFACTURER’S STANDARD |
| MATERIAL | SS316, SS316L, MONEL 400, INCONEL 625, DUPLEX, SUPER DUPLEX |
| SEAT & SEAL MATERIAL | RPTFE / PEEK |
| APPLICATIONS | INSTRUMENTATION, OIL & GAS, CHEMICAL, PETROCHEMICAL, POWER, HYDRAULIC & PNEUMATIC SYSTEMS |
| END CONNECTION COMBINATION | FEMALE THREADED X FEMALE THREADED X FEMALE THREADED |
| OPERATION | HAND LEVER |

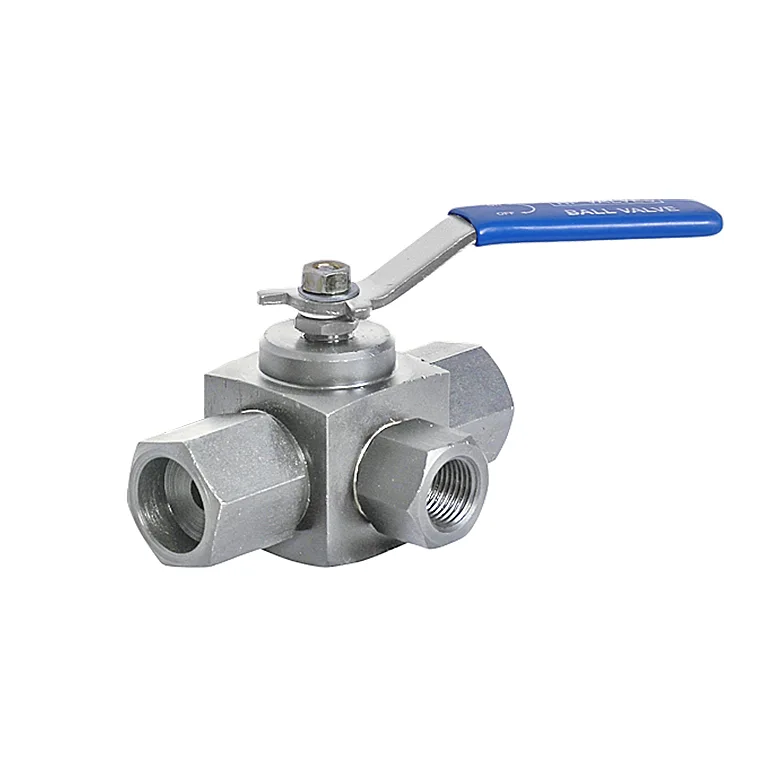

Heavy-duty 3-way ball valve with female (F x F) ports.
