Flange Connector – OD Type

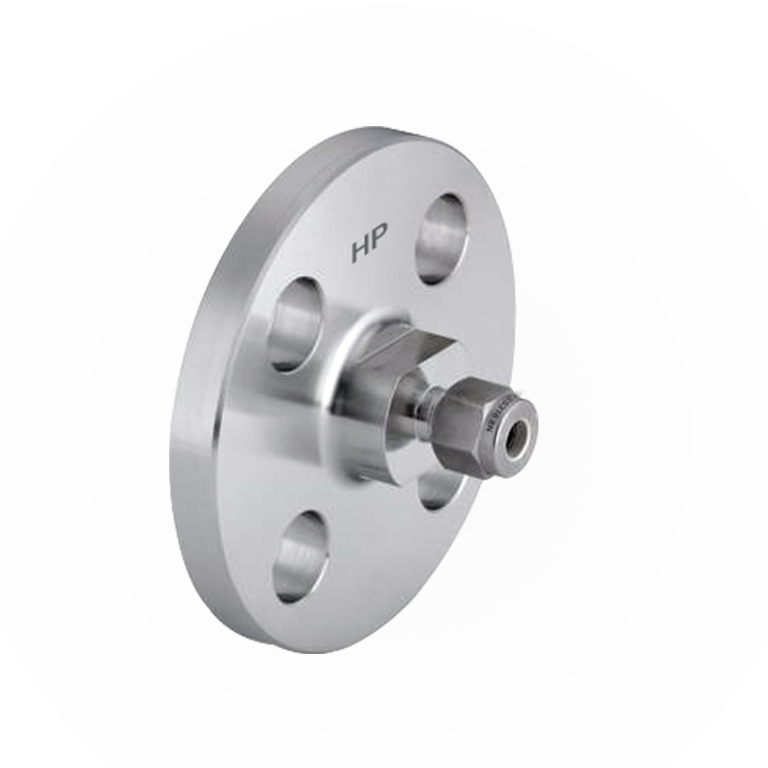

Flange Connector – OD Type (Tube to Flange)

Our Flange Connector OD Type is specially designed to connect instrumentation tubes directly to flanged equipment, valves, or piping systems. One end is suitable for tube OD connection while the other side features a standard flange for easy bolting. This makes it an ideal transition fitting between tubing and flanged piping systems.

Key Features:

• Material of Construction: Stainless Steel / Carbon Steel / Alloy Steel / Nickel Alloy
• Size Range: Flange: 1/2″ NB to 24″ NB | Tube: 1/8″ to 1″ OD & 4mm to 25mm OD
• End Connections: Tube OD (One Side) × Flange (Other Side)
• Pressure Rating: Class 150# to 2500#
• Design: OD Type Flange Connector
• Benefits: Reliable leak-proof transition from tube to flange, high pressure & temperature capability, excellent corrosion resistance, and easy installation.

Applications: Perfect for instrumentation systems, process control lines, hydraulic & pneumatic applications, pressure transmitters, gauges, and analyzer systems in Oil & Gas, Petrochemical, Chemical Processing, Power Generation, and Pharmaceutical industries.
