| PRODUCT | RETRIEVABLE QUILL FLANGED END |
| BODY TYPE | ACCESS FITTING BODY WITH SOLID PLUG |
| SIZE | UPTO 2″ |
| QUILL SCH. | SCH 80 TO SCH XXS |
| STAND OF HEIGHT | AS PER CUSTOMER REQUIREMENT |
| PR.RATING | CLASS 150# TO 2500# |
| QUILL SIZE | 1/4″ TO 1″ |
| QUILL TYPE | 45 DEGREE TAPER AT FREE END |
| INLET CONNECTION (INJECTION) | THREADED / FLANGED / SW |
| OUTLET CONNECTION (PROCESS) | FLANGED |
| NON RETURN VALVE | INTEGRAL CHECK VALVE |
| HEADER MOUNTING POSITION | HORIZONTAL |
| MATERIAL | CS / AS / SS / DSS / SDSS / SASS / MONEL / HASTELLOY / INCONEL |
| FLUID | ALL GASES AND FLUIDS INCLUDING MULTIPHASE, HYDROGEN, CNG, LNG, HYDROCARBONS, AIR, STEAM |
| TEMPERATURE RATING | -28°C to 185°C |
| FACE-TO-FACE / END-TO-END DIMENSION | MANUFACTURER STANDARD |

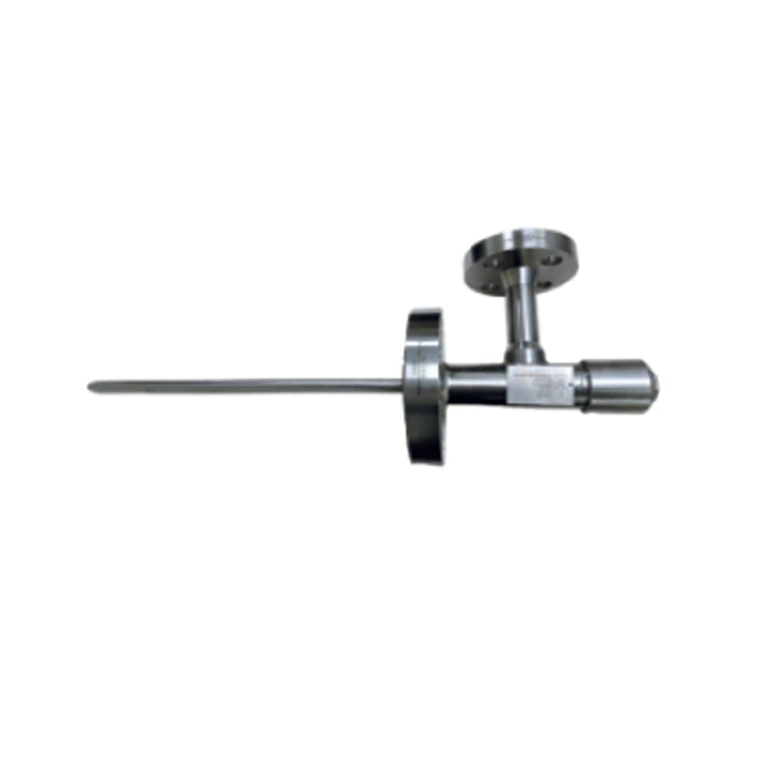

Retrievable Quill Flanged End
